柴油發電機組
超立柴油引擎電機組為本公司設計、製造、測試完成、滿足於客戶的任何需求。
- 整組設備包括:柴油引擎和其直接耦合的發電機，連同操作控制盤和整套避震系統一起接在重型鋼架機座上。
- 供小型電廠使用時，可單機與多機並聯使用，以最經濟實惠的方式來達到電力要求。
運轉性能
啟動方式
機組可為手動啟動及自動啟動。
電壓特性
全自動電壓調整器 (AVR或DVR)，以自動控制方式，從無載至滿載之瞬間電壓變動率在± l% 以內。穩態時之變動率在±0.5%以內。電壓調整幅度在±10%以內。
頻率特性
以精密機械或電子式調速器控制引擎轉速，從無載至滿載之瞬間頻率變動率為
A: 低於5% (機械調速器)
B: 低於1% (電子調速器)，穩定負載之下不超過0.5%。
電壓波形變形
電壓波形偏差係數低於6%，諧波失真係數低於6%，電話干擾因素(TIF)低於50 (NEMA MGI-22.43)。
控制系統

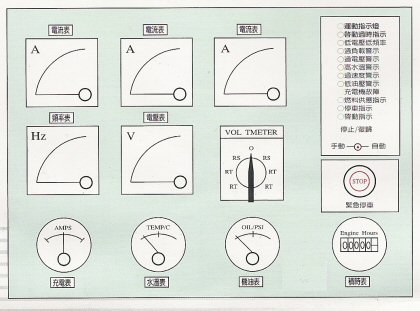

控制板
特點
1.電流表
2.頻率表
3.電壓表
4.電壓選擇開關
5.充電電流表
6.引擎水溫表
7.引擎機油壓力表
8.計時器
9.緊急停機按鈕
10.發電機動作選擇開關
11.啟動指示
12.停車指示
13.燃料供應指示
14.充電機故障指示
15.低油壓警示
16.過速度警示
17.高水溫警示
18.過電壓警示
19.過負載警示
20.低電壓低頻率指示
21.啟動過時警示
22.運轉指示
23.遙控自動啟動
24.防震保護
Generator Sets Control Panel Features
| Model | Frq | RPM | Prime Rating | Stand-By Rating | Cyl | Aspiration | Starting | Length | Width | Height | Weight |
| Hz | KW | KW | mm | mm | mm | Kg | |||||
| CLEC-007 | 50 | 1500 | 5 | 5.5 | 2 | Naturally Aspirated | 12V | 1520 | 630 | 1100 | 350 |
| CLEC-007 | 60 | 1800 | 6.6 | 7 | 2 | Naturally Aspirated | 12V | 1520 | 630 | 1100 | 350 |
| CLEC-010 | 50 | 1500 | 8 | 9 | 3 | Naturally Aspirated | 12V | 1540 | 630 | 1100 | 400 |
| CLEC-010 | 60 | 1800 | 9 | 10 | 3 | Naturally Aspirated | 12V | 1540 | 630 | 1100 | 400 |
| CLEC-015 | 50 | 1500 | 10 | 12 | 3 | Naturally Aspirated | 12V | 1560 | 630 | 1100 | 450 |
| CLEC-015 | 60 | 1800 | 13 | 15 | 3 | Naturally Aspirated | 12V | 1560 | 630 | 1100 | 450 |
| CLEC-015 | 50 | 1500 | 10 | 12 | 4 | Naturally Aspirated | 12V | 1560 | 630 | 1100 | 450 |
| CLEC-015 | 60 | 1800 | 13 | 15 | 4 | Naturally Aspirated | 12V | 1560 | 630 | 1100 | 450 |
| CLEC-020 | 50 | 1500 | 11 | 14 | 3 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-020 | 60 | 1800 | 15 | 20 | 3 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-020 | 50 | 1500 | 11 | 14 | 4 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-020 | 60 | 1800 | 15 | 20 | 4 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-030 | 50 | 1500 | 24 | 26.4 | 3 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-030 | 60 | 1800 | 28 | 30 | 3 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-030 | 50 | 1500 | 24 | 26.4 | 4 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-030 | 60 | 1800 | 28 | 30 | 4 | Naturally Aspirated | 12V | 1608 | 700 | 1273 | 660 |
| CLEC-040 | 50 | 1500 | 32 | 35 | 3 | Naturally Aspirated | 12V | 1695 | 700 | 1339 | 680 |
| CLEC-040 | 60 | 1800 | 37 | 40 | 3 | Naturally Aspirated | 12V | 1695 | 700 | 1339 | 680 |
| CLEC-040 | 50 | 1500 | 32 | 35 | 4 | Naturally Aspirated | 12V | 1695 | 700 | 1339 | 680 |
| CLEC-040 | 60 | 1800 | 37 | 40 | 4 | Naturally Aspirated | 12V | 1695 | 700 | 1339 | 680 |
| CLEC-050 | 50 | 1500 | 40 | 48 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 780 |
| CLEC-050 | 60 | 1800 | 45 | 50 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 780 |
| CLEC-050 | 50 | 1500 | 40 | 48 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 780 |
| CLEC-050 | 60 | 1800 | 45 | 50 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 780 |
| CLEC-060 | 50 | 1500 | 48 | 52.8 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 880 |
| CLEC-060 | 60 | 1800 | 56 | 60 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 880 |
| CLEC-060 | 50 | 1500 | 48 | 52.8 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 880 |
| CLEC-060 | 60 | 1800 | 56 | 60 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 880 |
| CLEC-080 | 50 | 1500 | 60 | 66 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 1220 |
| CLEC-080 | 60 | 1800 | 72 | 80 | 4 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 1220 |
| CLEC-080 | 50 | 1500 | 60 | 66 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 1220 |
| CLEC-080 | 60 | 1800 | 72 | 80 | 6 | Naturally Aspirated | 12V | 2142 | 720 | 1475 | 1220 |
| CLEC-100 | 50 | 1500 | 80 | 88 | 6 | Naturally Aspirated | 12V | 2166 | 720 | 1475 | 1380 |
| CLEC-100 | 60 | 1800 | 96 | 100 | 6 | Naturally Aspirated | 12V | 2166 | 720 | 1475 | 1380 |
| CLEC-110 | 50 | 1500 | 88 | 97 | 6 | Naturally Aspirated | 12V | 2166 | 720 | 1475 | 1380 |
| CLEC-110 | 60 | 1800 | 102 | 110 | 6 | Naturally Aspirated | 12V | 2166 | 720 | 1475 | 1380 |
| CLEC-125 | 50 | 1500 | 90 | 100 | 6 | Turbocharged Aspiration | 24V | 2400 | 1000 | 1400 | 1400 |
| CLEC-125 | 60 | 1800 | 113 | 125 | 6 | Turbocharged Aspiration | 24V | 2400 | 1000 | 1400 | 1400 |
| CLEC-150 | 50 | 1500 | 120 | 132 | 6 | Turbocharged Aspiration | 24V | 2613 | 828 | 1674 | 1500 |
| CLEC-150 | 60 | 1800 | 135 | 150 | 6 | Turbocharged Aspiration | 24V | 2613 | 828 | 1674 | 1500 |
| CLEC-175 | 50 | 1500 | 147 | 160 | 6 | Turbocharged Aspiration | 24V | 2850 | 1000 | 1780 | 2100 |
| CLEC-175 | 60 | 1800 | 159 | 175 | 6 | Turbocharged Aspiration | 24V | 2850 | 1000 | 1780 | 2100 |
| CLEC-200 | 50 | 1500 | 160 | 176 | 6 | Turbocharged Aspiration | 24V | 2900 | 900 | 1674 | 2700 |
| CLEC-200 | 60 | 1800 | 191 | 200 | 6 | Turbocharged Aspiration | 24V | 2900 | 900 | 1674 | 2700 |
| CLEC-250 | 50 | 1500 | 200 | 220 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2750 |
| CLEC-250 | 60 | 1800 | 239 | 250 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2750 |
| CLEC-275 | 50 | 1500 | 252 | 280 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2770 |
| CLEC-275 | 60 | 1800 | 250 | 275 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2770 |
| CLEC-300 | 50 | 1500 | 264 | 291 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2800 |
| CLEC-300 | 60 | 1800 | 291 | 300 | 6 | Turbocharged Aspiration | 24V | 3184 | 1155 | 2022 | 2800 |
| CLEC-350 | 50 | 1500 | 306 | 337 | 6 | Turbocharged Aspiration | 24V | 3298 | 1280 | 2190 | 3200 |
| CLEC-350 | 60 | 1800 | 313 | 350 | 6 | Turbocharged Aspiration | 24V | 3298 | 1280 | 2190 | 3200 |
| CLEC-400 | 50 | 1500 | 348 | 382 | 6 | Turbocharged Aspiration | 24V | 3298 | 1330 | 2190 | 3670 |
| CLEC-400 | 60 | 1800 | 391 | 400 | 6 | Turbocharged Aspiration | 24V | 3298 | 1330 | 2190 | 3670 |
| CLEC-400 | 50 | 1500 | 348 | 382 | 8 | Turbocharged Aspiration | 24V | 3298 | 1330 | 2190 | 3670 |
| CLEC-400 | 60 | 1800 | 391 | 400 | 8 | Turbocharged Aspiration | 24V | 3298 | 1330 | 2190 | 3670 |
| CLEC-450 | 50 | 1500 | 370 | 407 | 6 | Turbocharged Aspiration | 24V | 3300 | 1180 | 2350 | 3200 |
| CLEC-450 | 60 | 1800 | 409 | 450 | 6 | Turbocharged Aspiration | 24V | 3300 | 1180 | 2350 | 3200 |
| CLEC-500 | 50 | 1500 | 386 | 425 | 6 | Turbocharged Aspiration | 24V | 3500 | 1180 | 2350 | 3500 |
| CLEC-500 | 60 | 1800 | 435 | 500 | 6 | Turbocharged Aspiration | 24V | 3500 | 1180 | 2350 | 3500 |
| CLEC-600 | 50 | 1500 | 500 | 550 | 12v | Turbocharged Aspiration | 24V | 3400 | 1660 | 1910 | 4000 |
| CLEC-600 | 60 | 1800 | 545 | 600 | 12v | Turbocharged Aspiration | 24V | 3400 | 1660 | 1910 | 4000 |
| CLEC-750 | 50 | 1500 | 585 | 650 | 16v | Turbocharged Aspiration | 24V | 3914 | 1778 | 2306 | 5235 |
| CLEC-750 | 60 | 1800 | 675 | 750 | 16v | Turbocharged Aspiration | 24V | 3914 | 1778 | 2306 | 5235 |
| CLEC-800 | 50 | 1500 | 640 | 700 | 16v | Turbocharged Aspiration | 24V | 4260 | 2020 | 2370 | 7420 |
| CLEC-800 | 60 | 1800 | 725 | 800 | 16v | Turbocharged Aspiration | 24V | 3914 | 2020 | 2370 | 7420 |
| CLEC-900 | 50 | 1500 | 725 | 800 | 16v | Turbocharged Aspiration | 24V | 4260 | 2020 | 2370 | 7510 |
| CLEC-900 | 60 | 1800 | 818 | 900 | 16v | Turbocharged Aspiration | 24V | 3914 | 2020 | 2370 | 7510 |
| CLEC-1000 | 50 | 1500 | 16v | Turbocharged Aspiration | 24V | 4650 | 2150 | 2450 | 9436 | ||
| CLEC-1000 | 60 | 1800 | 900 | 1000 | 16v | Turbocharged Aspiration | 24V | 4650 | 2150 | 2450 | 9436 |
| CLEC-1250 | 50 | 1500 | 1000 | 1120 | 16v | Turbocharged Aspiration | 24V | 4650 | 2150 | 2450 | 10128 |
| CLEC-1250 | 60 | 1800 | 1100 | 1250 | 16v | Turbocharged Aspiration | 24V | 4650 | 2150 | 2450 | 10128 |
| CLEC-1500 | 50 | 1500 | 1070 | 1280 | 16v | Turbocharged Aspiration | 24V | 5450 | 2150 | 2450 | 10429 |
| CLEC-1500 | 60 | 1800 | 1250 | 1500 | 16v | Turbocharged Aspiration | 24V | 5450 | 2150 | 2450 | 10429 |
| CLEC-2000 | 50 | 1500 | 1640 | 1800 | 16v | Turbocharged Aspiration | 24V | 6600 | 2200 | 3000 | 11000 |
| CLEC-2000 | 60 | 1800 | 1600 | 2000 | 16v | Turbocharged Aspiration | 24V | 6600 | 2200 | 3000 | 11000 |
